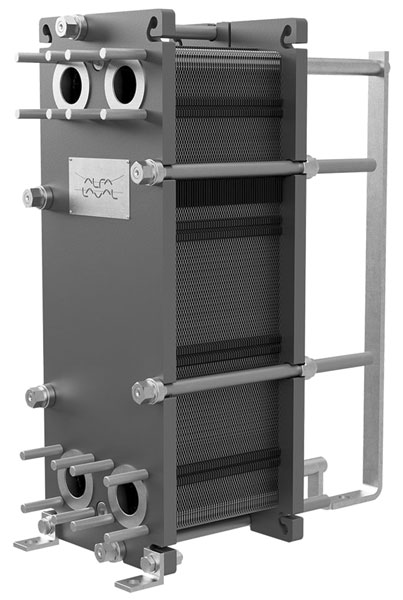

Gasketed plate-and-frame Heat exchanger
Gasketed plate heat exchanger for a wide range of applications
Alfa Laval Industrial line is a wide product range that is used in virtually all types of industry. Suitable for a wide range applications, this model is available with a large selection of plate and gasket types.
Applications
- Biotech and Pharmaceutical
- Chemicals
- Energy and Utilities
- Food, Dairy and Beverages
- Home and Personal care
- HVAC and Refrigeration
- Machinery and Manufacturing
- Marine and Transportation
- Mining, Minerals and Pigments
- Pulp and Paper
- Semiconductor and Electronics
- Steel
- Water and Waste treatment
Features
Every detail is carefully designed to ensure optimal performance, maximum uptime and easy maintenance. Selection of available features, depending on configuration some features may not be applicable
- Five-point alignment
- T-bar roller
- CurveFlowTM distribution area
- ClipGripTM gasket attachment
- Offset gasket groove
- OmegaPortTM noncircular port holes
- Leak chamber
- SteerLockTM plate alignment
- FlexFlowTM plate design
- Compact frame
- Bearing boxes
- Fixed bolt head
- Key hole bolt opening
- Lifting lug
- Lining
- Lock washer
- Tightening bolt cover
Benefits
- High energy efficiency – low operating cost
- Flexible configuration – heat transfer area can be modified
- Easy to install – compact design
- High serviceability – easy to open for inspection and cleaning and easy to clean by CIP
- Access to Alfa Laval’s global service network
Alfa Laval 360° Service Portfolio
Our extensive service offering ensure top performance from your Alfa Laval equipment throughout its life cycle. The Alfa Laval 360 Service Portfolio include installation services, cleaning and repair as well as spare parts, technical documentation and trouble shooting. We also offer replacement, retrofit, integrity testing, monitoring and much more.
Alfa Laval T6
Gasketed plate-and-frame heat exchanger for a wide range of applications
Alfa Laval Industrial line is a wide product range that is used in virtually all types of industry.
Designed for high throughput, this model delivers excellent thermal performance. A large selection of plate and gasket types is available
Applications
- Biotech and Pharmaceutical
- Chemicals
- Energy and Utilities
- Food and Beverages
- Home and Personal care
- HVAC and Refrigeration
- Machinery and Manufacturing
- Marine and Transportation
- Mining, Minerals and Pigments
- Pulp and Paper
- Semiconductor and Electronics
- Steel
- Water and Waste treatment
Features
Every detail is carefully designed to ensure optimal performance, maximum uptime and easy maintenance. Selection of available features, depending on configuration some features may not be applicable
- CurveFlowTM distribution area
- ClipGripTM gasket attachment
- Offset gasket groove
- OmegaPortTM noncircular port holes
- Leak chamber
- SteerLockTM plate alignment
- FlexFlowTM plate design
- Compact frame
- Fixed bolt head
- Key hole bolt opening
- Lifting lug
- Lining
- Lock washer
- Tightening bolt cover
Benefits
- High energy efficiency – low operating cost
- Flexible configuration – heat transfer area can be modified
- Easy to install – compact design
- High serviceability – easy to open for inspection and cleaning and easy to clean by CIP
- Access to Alfa Laval’s global service network
Alfa Laval 360° Service Portfolio
Our extensive service offering ensure top performance from your Alfa Laval equipment throughout its life cycle. The Alfa Laval 360 Service Portfolio include installation services, cleaning and repair as well as spare parts, technical documentation and trouble shooting. We also offer replacement, retrofit, monitoring and much more.
Alfa Laval T25
Gasketed plate heat exchanger for a wide range of applications
Alfa Laval Industrial line is a wide product range that is used in virtually all types of industry. Designed for high throughput, this model delivers excellent thermal performance. A large selection of plate and gasket types is available
Applications
- Biotech and Pharmaceutical
- Chemicals
- Energy and Utilities
- Food and Beverages
- Home and Personal care
- HVAC and Refrigeration
- Machinery and Manufacturing
- Marine and Transportation
- Mining, Minerals and Pigments
- Pulp and Paper
- Semiconductor and Electronics
- Steel
- Water and Waste treatment
Features
Every detail is carefully designed to ensure optimal performance, maximum uptime and easy maintenance. Selection of available features, depending on configuration some features may not be applicable:
- Five-point alignment
- T-bar roller
- CurveFlowTM distribution area
- PowerArcTM plate pattern divider
- ClipGripTM gasket attachment
- Offset gasket groove
- OmegaPortTM noncircular port holes
- Leak chamber
- FlexFlowTM plate design
- Bearing boxes
- Fixed bolt head
- Key hole bolt opening
- Lifting lug
- Lining
- Lock washer
- Tightening bolt cover
Benefits
- High energy efficiency – low operating cost
- Flexible configuration – heat transfer area can be modified
- Easy to install – compact design
- High serviceability – easy to open for inspection and cleaning and easy to clean by CIP
- Access to Alfa Laval’s global service network
Alfa Laval 360° Service Portfolio
Our extensive service offering ensure top performance from your Alfa Laval equipment throughout its life cycle. The Alfa Laval 360 Service Portfolio include installation services, cleaning and repair as well as spare parts, technical documentation and trouble shooting. We also offer replacement, retrofit, monitoring and much more.
Alfa Laval T10
General remarks for technical information
- The global offering presented in this leaflet may not be available for all regions
- All combinations may not be configurable
Frame type H W h
ZM ALS, PED 957 (37.7”) 420 (16.5”) 128 (5.04”)
FM ALS, PED 1054 (41.5”) 470 (18.5”) 190 (7.48”)
FG ALS, PED, Marine1 1054 (41.5”) 470 (18.5”) 190 (7.48”)
FG ASME 1054 (41.5”) 470 (18.5”) 190 (7.48”)
FD ALS, PED 1054 (41.5”) 470 (18.5”) 190 (7.48”)
FD ASME 1054 (41.5”) 470 (18.5”) 190 (7.48”)
Dimensional drawing
Measurements mm (inches)
Alfa Laval T15
General remarks for technical information
- The global offering presented in this leaflet may not be available for all regions
- All combinations may not be configurable
Frame type H W h
FM, PED, ALS, Marine 1 1833 (72.7”) 610 (24.0”) 270 (10.6”)
FG, PED, ALS, Marine 1 1871 (73.7”) 650 (25.6”) 284.5 (11.2”)
FG, ASME 1856 (73.1”) 650 (25.6”) 270 (10.6”)
FS, PED, ALS, ASME 1871 (73.7”) 650 (25.6”) 284.5 (11.2”)
FD, ASME 1871 (73.7”) 650 (25.6”) 284.5 (11.2”)
Dimensional drawing
Measurements mm (inches)
Alfa Laval T25
General remarks for technical information
- The global offering presented in this leaflet may not be available for all regions
- All combinations may not be configurable
Frame type H W h
FM pvcALS, PED, Marine1 2661 (104.8”) 913 (35.9”) 331 (13.0”)
FG pvcALS, ASME, PED 2661 (104.8”) 913 (35.9”) 331 (13.0”)
FD pvcALS, PED 2711 (106.7”) 913 (35.9”) 331 (13.0”)
FD ASME 2711 (106.7”) 942 (37.1”) 331 (13.0”)
FS pvcALS 2711 (106.7”) 913 (35.9”) 331 (13.0”)
FS ASME 2711 (106.7”) 942 (37.1”) 331 (13.0”)
Dimensional drawing
Measurements mm (inches)

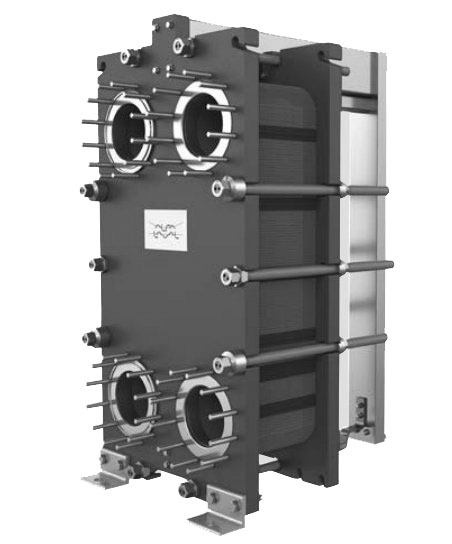

Alfa Laval TK20-W
Gasketed plate heat exchanger for demanding applications
Alfa Laval Industrial semi-welded line is used when gaskets are not suitable for one of the process media. The semi- welded line can also withstand a higher design pressure compared to fully gasketed plate-and-frame heat exchangers.
The relatively short plate makes this model suitable for duties with short temperature programs and when a low pressure drop is appreciated. A large range of plate and gasket types is available.
Applications
- Chemicals
- Energy and Utilities
- Food and Beverages
- HVAC and Refrigeration
- Marine and Transportation
- Mining, Minerals and Pigments
- Pulp and Paper
- Steel
- Water and Waste treatment
Features
Every detail is carefully designed to ensure optimal performance, maximum uptime and easy maintenance. Selection of available features, depending on configuration some features may not be applicable:
- Five-point alignment
- T-bar roller
- CurveFlowTM distribution area
- ClipGripTM gasket attachment
- Leak chamber
- RefTightTM sealing system
- Compact frame
- Bearing boxes
- Fixed bolt head
- Key hole bolt opening
- Lifting lug
- Lining
- Lock washer
- Swing feet
- Tightening bolt cover
- Optimized Alfa Laval drain connection
Benefits
- High energy efficiency – low operating cost
- Flexible configuration – heat transfer area can be modified
- Easy to install – compact design
- High serviceability – easy to open for inspection and cleaning and easy to clean by CIP
- Access to Alfa Laval’s global service network
Alfa Laval 360° Service Portfolio
Our extensive service offering ensure top performance from your Alfa Laval equipment throughout its life cycle. The Alfa Laval 360 Service Portfolio include installation services, cleaning and repair as well as spare parts, technical documentation and trouble shooting. We also offer replacement, retrofit, monitoring and much more.
Alfa Laval CB16 / CBH16
Brazed plate heat exchanger
Alfa Laval CB brazed plate heat exchangers provide efficient heat transfer with a small footprint.
Applications
- HVAC heating and cooling
- Oil cooling
- Industrial heating and cooling
Benefits
- Compact
- Easy to install
- Self-cleaning
- Low level of service and maintenance is required
- All units are pressure and leak tested
Design
The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life.
Different pressure ratings are available for different needs.
Based on standard components and a modular concept,
including symmetric and asymmetric channels, each unit is
custom-built to meet the specific requirements of each individual installation.
Examples of connections
