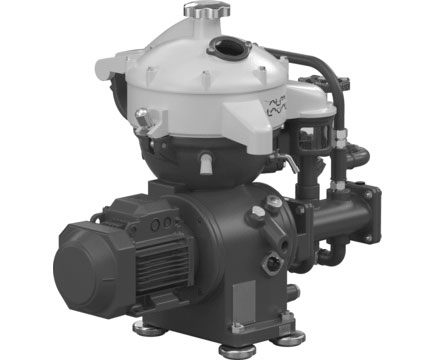

MAB
Application
Purification or clarification of mineral oils used in marine
installations and power stations (fuel and lubricating oils).
Working principle
Separation takes place in a solids-retaining bowl that can be arranged for either clarification or purification. In both cases, the contaminated oil is fed into the separator through the centre, and it is separated by centrifugal force into its various phases, the heaviest phase (sludge and water) being forced outwards to the periphery of the bowl. The accumulation of sludge is periodically removed from the bowl by hand.

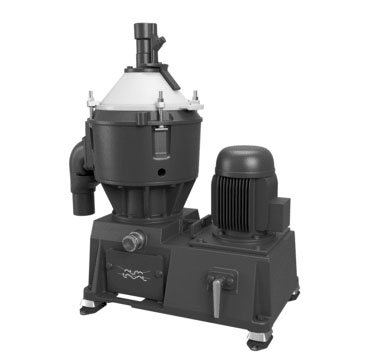

MMB
Application
Purification or clarification (optional) of mineral oils used in marine installations and power stations.
- Distillates
- Marine Diesel Oils MDO up to 13 cSt at 40°C
- Lubricating oils for trunk diesel engines operating on distillates and light MDO
- Lubricating oils for steam and gas turbines
- Lubricating and hydraulic oils for hydroelectric power stations
Features
The unique features of the system are:
- Compact, robust design
- Internal paring disc for discharge of clean oil
- Large sludge space
- Belt-driven
Benefits
- Easy to Install
- Requires limited space.
- Pressurised discharge of clean oil.
- No need for downstream pump.
- Fewer service
- Larger sludge space extends operating period between manual cleaning.
- Lower maintenance and spare parts

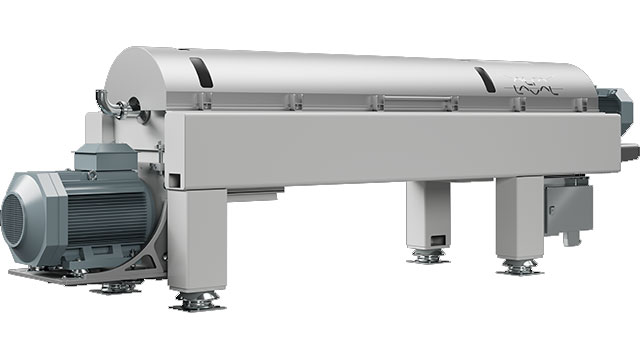

Alfa Laval ALDEC range of decanter centrifuges
High-performance decanter for sludge thickening and dewatering
Application
The Alfa Laval ALDEC range of decanter centrifuges are designed with a focus on cost-efficiency, reliability and easy operation. They are used for thickening and dewatering of sludge from municipal and industrial water and waste treatment plants.
ALDEC decanter centrifuges are capable of handling a wide range of flow rates. They are designed to be efficient, simple to install, easy to maintain and straightforward to operate. Installation, operating and service life costs are minimal.
Benefits
The ALDEC decanter centrifuge design provides a series of practical benefits:
- Reduces sludge volume, which cuts down on transport and disposal costs
- High capacity at small footprint: Compact, modular design saves space
- High performance combined with low energy consumption.
ALDEC decanter centrifuges are capable of handling a wide range of flow rates. They are designed to be efficient, simple to install, easy to maintain and straightforward to operate. Installation, operating and service life costs are minimal.
Working principle
Working principle Separation takes place in a horizontal cylindrical bowl equipped with a screw conveyor (see diagram). The feed enters the bowl through a stationary inlet tube and is accelerated smoothly by an inlet distributor. The centrifugal force that results from this rotation then causes sedimentation of the solids on the wall of the bowl.
The conveyor rotates in the same direction as the bowl, but slightly slower, thus moving the solids towards the conical end of the bowl. The cake leaves the bowl through the solids discharge openings into the casing. Separation takes place throughout the entire length of the cylindrical part of the bowl, and the clarified liquid leaves the bowl by flowing over adjustable plate dams into the casing.
Separators
Utilizing centrifugal separation, the Alfa Laval range is a series of extremely efficient systems for cleaning industrial service fluids, such as coolants, wash liquids and mineral oils.
Separators
Product Details
At Alfa Laval we understand the critical role that a separator plays in your operations. From food and beverage processing and pharmaceuticals to marine applications, oil and gas and more, we can support you with both the expertise and the separation equipment to match your application needs. For over a century, we have built a reputation for supplying reliable technology with innovations that continuously improve separation performance, safety, and sustainability.
| Approx Price | Rs. 6.5 Lakhs Onwards |
