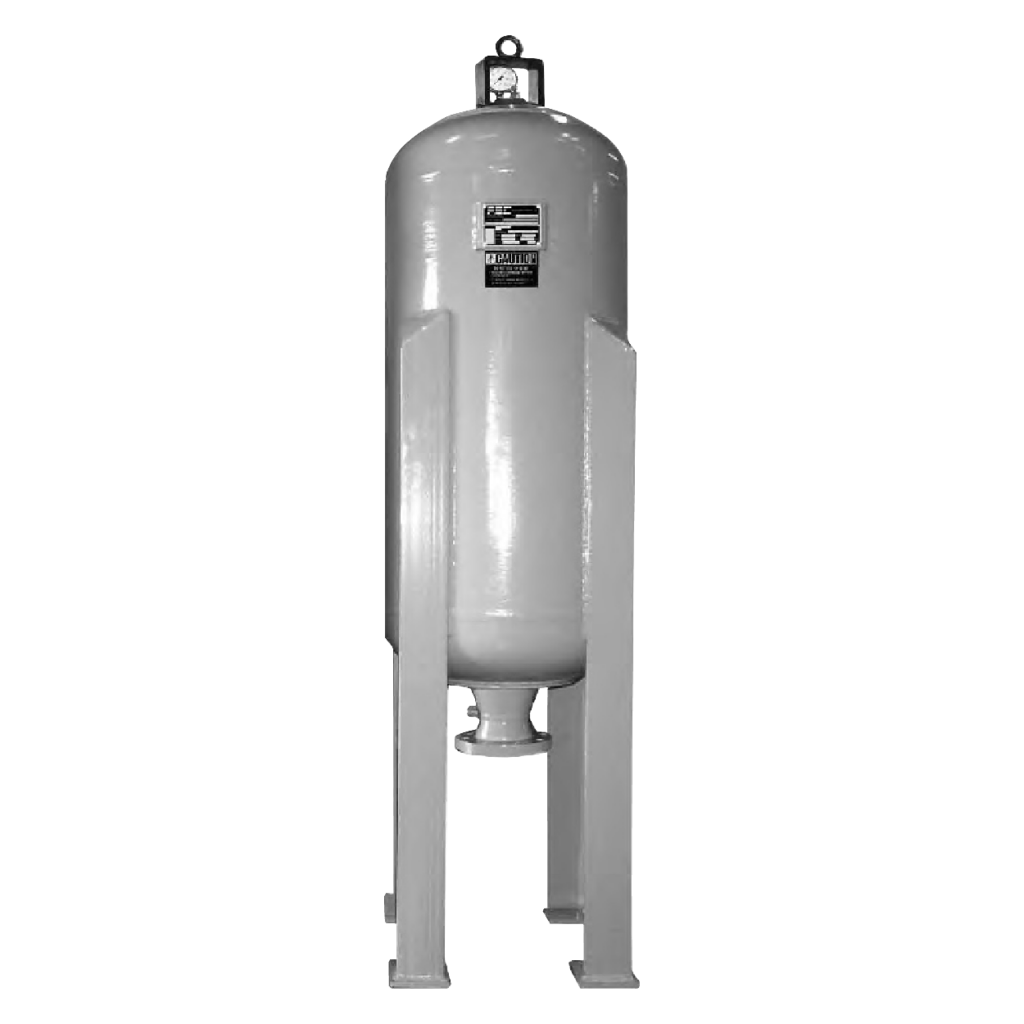

Custom Accumulators
Specifications
- Design Pressure : 225/250 PSI, 500 PSI, 850 PSI, 1,500 PSI, 3,000 PSI
- Temperature : -20°F to +200° F
- Bladder Material : Buna-N, Viton, EPR, Hydrin, Butyl
- Shell Material : Carbon Steel, 304 SS, 316 SS
Features
- Certification – ASME VIII, Div. 1, CE/PED, CRN, NR-13, SELO, DOSH, AS1210, Other certifications also available
- Capacity – 1 Qt to 120 Gal (1L to 500L)
- Gas Port – Schrader Gas Valve standard
- Lifting Lugs and Legs are available for larger unit upon request

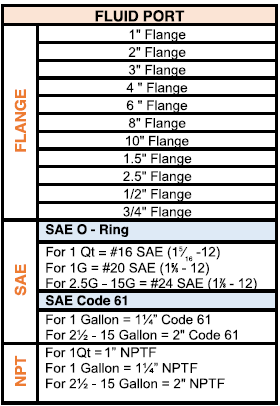

- Fluid Connection – Shown in the table below
Dimensions (1Qt — 40G)
Dimensions (25G - 120G) (22” Diameter)
Note
- The maximum design pressure for 22” diameter accumulator is 500 PSI
- All the dimensions and weight are for general information
- Please verify all critical dimensions with Fluid Energy Controls
- Other materials of construction, pressure and connections are available Upon
- Contact Fluid Energy Controls for any special size not listed in the tables
