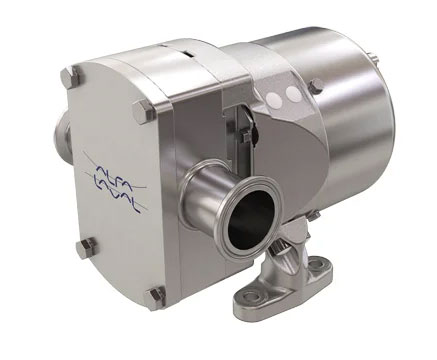

Alfa Laval OptiLobe
Rotary lobe pumps
The Alfa Laval OptiLobe Rotary Lobe Pump is a cost-effective alternative for general applications that require gentle product treatment and easy serviceability, Versatile, dependable and energy efficient, this hygienic positive displacement pump enhances both process flexibility and operational reliability.
The pump is designed according to the most stringent hygienic design standards and with verified, effective Cleaning-in-Place.
Applications
The OptiLobe Rotary Lobe Pump is designed for gentle product treatment in general applications across the dairy, food, beverage, home and personal care industries.
The OptiLobe pump is available with 10 different pump head displacements based on five different gearbox modules to handle flow rates up to 77 m3/h and differential pressures up to 8 bar.
Benefits
- Cost-effective, hygienic
- Optimal product quality due to gentle, low-shear
- Robust design for long service
- Easy maintenance due to self-setting, front-loading
- Low total cost of ownership.
Options
- Single mechanical shaft seal with
- Silicon Carbide/Carbon seal
- Silicon Carbide/Silicon Carbide seal
- Product wetted elastomers in
- Heating and cooling front cover.
- Horizontal or vertical
- Stainless steel shroud covering coupling and motor.
- Baseplate fitted with adjustable stainless steel ball
Flexible Impeller Pump
Designed for low, medium and high-viscosity media, Positive pumps offer gentle pumping action and reliable performance which results from more than 50 years of continuous development at advanced production and R&D facilities.
Rotary lobe pumps
Product Details
Our rotary lobe pumps are designed for low, medium and high-viscosity media and offer gentle pumping action and reliable performance. Our portfolio includes three ranges: SX, SRU and OptiLobe . With its robust construction, each pump is developed for a different type of demand and meets high standards of quality and reliability. Collectively, they provide operating economy and high flexibility of use.
| Approx Price | Rs. 4 Lakhs Onwards |
Alfa Laval SRU Rotary Lobe Pump
Application
The SRU range of rotary lobe pumps has been designed for use on wide ranging applications within the Brewing, Dairy, Food, Pharmaceutical and Chemical industries. The SRU pump can handle from low to high viscosity media with its characteristic smooth, low shear pumping action being ideal for products such as creams, gels, emulsions, aerated mixtures, and delicate cells and organic solids in suspension.
The SRU range is suitable for CIP (Cleaning In Place) and conforms to USA 3-A Hygienic Standard. In addition the SRU pump range is certified by EHEDG (European Hygienic Equipment Design Group) as fully CIP cleanable to their protocol. The SRU pump range is
also classified for use in potentially explosive atmospheres under the ATEX Directive 94/9/EC Group II, Categories 2 & 3, with temperature classification T1 to T4. The SRU range is compact in size and highly efficient, capable of flow rates up to 106 m³/h and pressures up to 20 bar
The SRU in standard specification has tri-lobe rotors with the option of bi-lobe rotors for handling fluids containing large delicate solids. All rotors are available in three temperature ratings allowing the pump to be operated at maximum process temperatures of 70°C, 130°C and 200°C for both fluid pumped and CIP
Shaft Seal Options
- Single or single flush/quench.R90 or Hyclean type mechanical seals.
- Double R90 type mechanical seal for flush (steam barrier for aseptic application).
- Packed gland (unflushed or flushed versions).
