Diaphragm Accumulators
Features
- Capacity up to 213 cu in (3.50L)
- Gas Port: Schrader gas valve or Metric gas valve
- Fluid Port: SAE or Metric
- Cost effective solution for storing energy under pressure
- Compact and light weight
- Suited where space and weight are limited.
- Non-repairable design
Applications
- Agricultural Equipment
- Construction Equipment
- Lubrication Systems
- Power Generation
- Energy Transmission and Distribution
- Air and Gas Compressors
- Molding

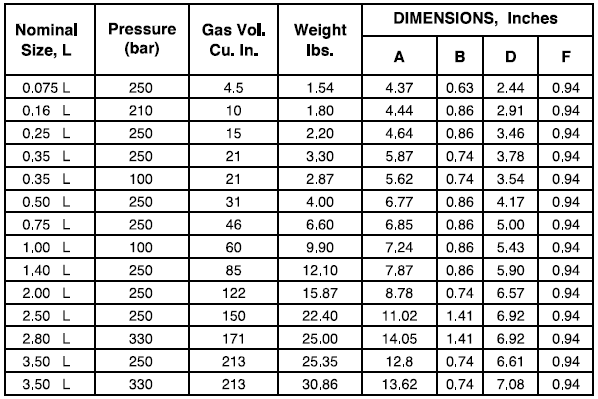

Dimensions
Contact Fluid Energy Controls, Inc. for any special size not listed in the tables
